Our InnerDrive Conveyors Include:
- 24vdc motor

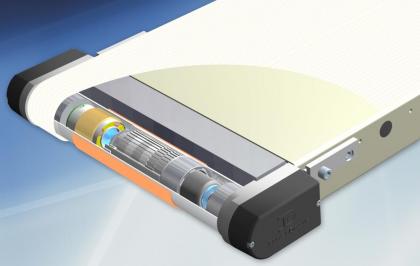

- Located inside the drive pulley, maximum torque is provided by integrated internal gears for speeds up to 60 feet per minute and loads up to 100 lbs.
- This unique conveyor design frees you from lubricating bearings and gearboxes. The low-voltage motor protects workers from dangerous currents.
- A variable speed control card easily integrates with automation systems for “run on demand” applications, using inhibit/run controls from devices such as timers and photo-eyes.
- Lighted indicators identify status at a glance.
This conveyor is great on space, as the drive motor is inside the conveyor pullet. They offer great space savings over other conveyor options, and can work for almost any application.
Specifications:
- Available Widths:
12”, 18”, 24” - Available Lengths:
24” to 144”
Actual conveyor length for conveyors 72” or longer is nominal length minus 1.12”; for conveyors under 72” subtract .81” from nominal length. - Available Speeds:
7-50 fpm
Variable Speed with control - Frame Construction:
Epoxy powder coated steel OR stainless steel - Motor:
15,000 hours
Sealed construction design
IP-54 rating - Load Capacity:
12" 75lbs. @ 30fpm
50lbs. @ 60fpm18”, 24” 100lbs. @ 30fpm
75 lbs. @ 60fpm - Rated Torque:
12" 28.5 in. lbs. @ 30fpm
19.4 in. lbs. @ 60fpm18”, 24” 59.2 in. lbs. @ 30fpm
30.9 in. lbs. @ 60fpm - Rated Power:
12" .09hp (65 watts) 18”, 24” .11hp (80 watts) - Input Voltage:
115vac / 230vac, 1ph - Motor Voltage:
24vdc brushless - Motor Pulley Diameter:
2” diameter - Available Control Wire Lengths:
12”, 24”, 48”, 96” - Controller Specifications:
Variable speed potentiometer
Run/Stop input
LED status indicators
Built-in thermal overload protection
NEMA Type 1 - Available Options:
24vdc power supply
uL listed control panel - Available Conveyor Styles:
Horizontal Conveyor
Angled Frame Conveyor
