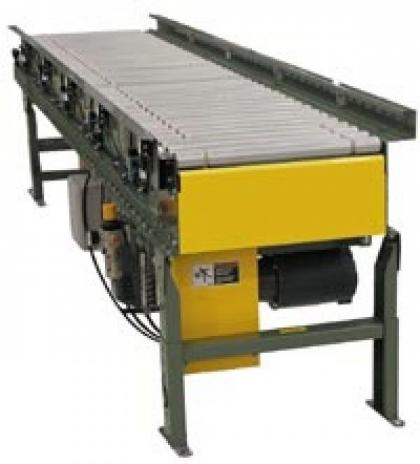

The Model 190-NSPEZ is a horizontal live roller conveyor designed for Zero-Pressure Accumulation of product. Positive braking in each zone reduces the possibility of damage to fragile items during accumulation. Singulation feature allows products to be removed from any location on the conveyor.
Model 190-NSPEZ Features:
- Bed 9-1/2" deep x 12 ga. formed steel channel frame powder painted
- Rollers 1.9" dia. x 16 ga. galvanized tread rollers spaced every 3" and an EZLogic® Accumulation Module located in each zone
- Overall Frame Widths 16", 18", 20", 22", 24", 26", 28", 30", 34", 36", 40", & 42"
- Motor 1/2 HP standard - 2 HP max.
- Supports Adjustable Floor Supports Available
- Capacity Maximum load; 15 lbs. per drive roller. No minimum load
- Other Accumulation Zones - 12", 18", 24", 30", & 36" Long Air Controlled
