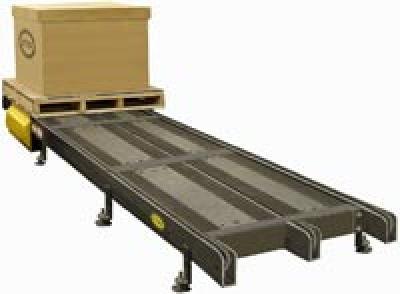

The model DCEZ-63 is a three strand drag chain conveyor designed to handle pallets. With EZLogic® accumulation module, pallets are accumulated with zero-back pressure reducing the possibility of collision that may result in product damage.
Model DCEZ-63 Features:
- Bed 6" x 7 ga. powder painted formed steel angle with 1-1/2" x 3/16" wall steel chain support tube
- Overall Frame Widths 37-7/8", 43-7/8", 49-7/8", 55-7/8", 61-7/8", 67-7/8", 73-7/8", 79-7/8", 85-7/8", 91-7/8", & 99-7/8"
- Motor 1-1/2 HP Gearmotor
- Supports Floor Supports Available
- Capacity 11,000 lbs. maximum load at 30 FPM
- Features C-2060-H Double Pitch Conveyor Chain
