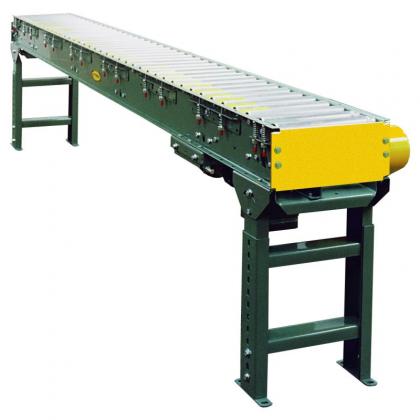

Model 190-ACC Features:
- 12 Bed Widths
- 2% Minimum Back Pressure
- Finger Tip Snub Roller Adjustment, No Tools Needed
- Reversible
- Adjustable MS-Type Floor Supports Available
Model 190-NSPC Specifications:
- Bed - 6-1/2" deep x 12 ga. formed steel channel frame powder painted
- Rollers - 1.9" dia. x 16 ga. galvanized tread rollers spaced every 3" and 1.9" dia. x 16 ga. galvanized pressure rollers spaced every 6"
- Overall Frame Widths: 16", 18", 20", 22", 24", 26", 28", 30", 34", 36", 40", & 42"
- Capacity - Maximum load per linear ft. of conveyor; 150 lbs., not to exceed rated capacities
