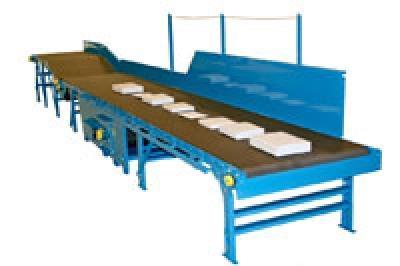

The Model HSS is designed for the parcel handling industry with bolted construction.
Model HSS Features:
- Bed 2 ga. formed steel slider bed bolted between two 3 5/8 in. deep x 10 ga. formed steel side channels.
- Belt 4 belt widths. Supplied by customer.
- Belt Speed Constant 60 FPM.
- Overall Conveyor Lengths 2', 4', 6', 8', & 10'
- Drive Center Drive with 8", 12" or 16" Dia. Drive Pulley
- Motor 1HP
- Supports Adjustable FXG-Type Floor Supports Available
- Capacity Maximum load per linear foot of conveyor 50 lbs.
