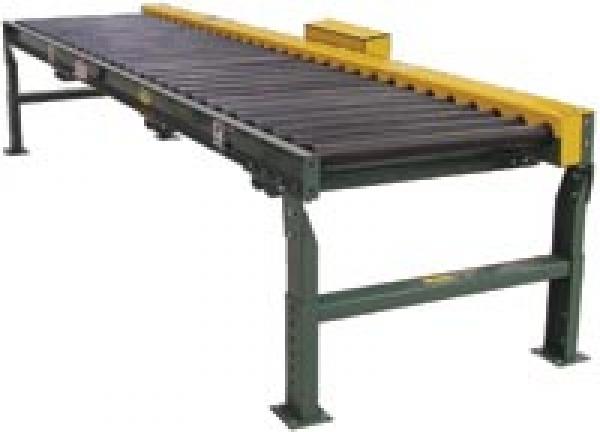

The Model 199-CRR is a medium duty chain driven live roller conveyor. The roll-to-roll chain drive makes this convyeor ideal for light to medium duty pallet handling or oily conditions which are not suitable for belt driven live roller.
Model 199-CRR Features:
- Bed 1.9 in. x 9 ga. wall unplated tread rollers spaced every 4 in. or 6 in. mounted in 7 ga. powder painted formed steel channel frame.
- Overall Frame Widths 18", 20", 22", 24", 26", 28", 30", 34", 36", 40", & 42"
- Motor 1/2 HP standard - 1 HP max.
- Drive Chain #40 roller-to-roller chain. #60 motor drive chain.
- Supports Floor Supports Available
- Capacity maximum load per linear foot of conveyor 150 lbs with supports on 10 ft. centers, 250 lbs. per ft. with supports on 5 ft. centers and 4 in. roller centers. Not to exceed rated capacities
