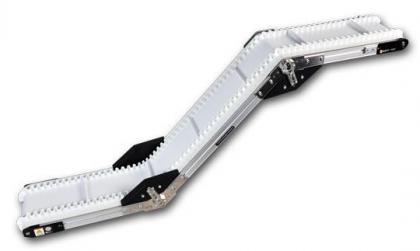

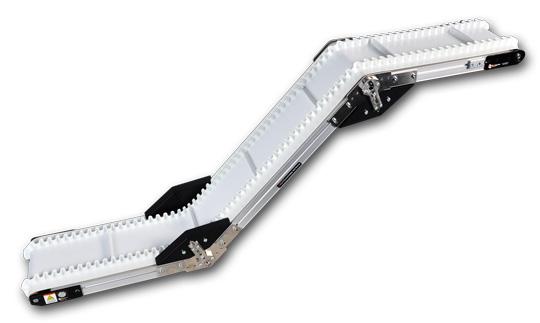

Our Angled Frame low profile conveyor belts are a versatile option for elevating and lowering applications. Our rigid aluminum frames can be manufactured in Z, L & R configurations to suit your transporting needs. Our versatile conveyors are equipped with a compact drive with high tech features that will allow precision speeds and accurate control. Norpak has been a trusted distributor of low-profile conveyors, our experience in conveyors ensure that we are able to help you with any questions you may have regarding the right unit for your facility.
Our Angled Frame Conveyors Include:
- Angled sections: Z, L &R frames
- Rigid aluminum frame with tee slots
- Tension Release tails
- Z-Track design for control over belt tracking
Specifications
- 6 Widths
- Lengths up to 20"
- Maximum load capacity: 120 lbs
- Speeds up to 200 FPM
- 1.95" Aluminum Frame
- 30°, 45°, 60° angles available
Drives:
Side Drives
- Standard Duty
- 40, 90 and 200 Watt
- Fixed Speeds: 4.5- 180 FPM (depending on Watts)
- Heavy Duty: 12-120 FPM fixed speed
Top Drives
- Standard Duty
- 40, 90 and 200 Watt
- Fixed Speeds: 4.5- 316 FPM (depending on Watts)
- Heavy Duty: 12-120 FPM fixed speed
Bottom Drives
- Standard Duty
- 40, 90 & 200 Watt
- Fixed Speeds: 4.5-316 FPM (depending on Watts)
- Heavy Duty: 12-225 FPM
Brushless DC Motor and Standard Duty DC Control
Standard Duty DC Control
- 50:1 Speed Range
- UL/ULc/CE
- IP20 Protection Rating
- Three speed display modes
- Multi-speed operation: up to 8
Brushless DC Motor
- 120,200 and 400 Watt
- Available for 115V Single Phase, 230V Single Phase, and 230V Three Phase
